Overview

High Performance. Low Bake.

Manufacturers are increasingly aware of how product materials and processes, including coating finishes, influence energy consumption and environmental sustainability. Additionally, businesses recognize the challenges posed by rising energy costs and ongoing supply issues, prompting a need for innovative approaches in a world that prioritizes its future.

LB-SERIES is a specially formulated thermoset powder coating solution designed to lower baking temperatures and reduce curing times, resulting in less energy usage and faster production, without sacrificing performance. This unique system allows curing temperatures to be approximately 30 to 60°C lower (ranging from 140°C to 170°C), leading to energy savings and cost reductions of up to 25%. Furthermore, adopting LB-SERIES enhances productivity with an average 20% quicker cure time.

Low-Bake Thermoset Powder Coatings

Features

Energy Savings – Lower baking temperatures result in reduced energy consumption and decreased costs.
Environmental Friendliness – Decreased energy usage contributes to lower CO2 emissions, thereby supporting corporate sustainability goals.
Productivity & Efficiency – Quicker curing times and lower temperatures enhance production line efficiency, yielding greater productivity.
Heat-Sensitive Substrates – Ideal for coating materials that cannot endure high baking temperatures, including wood, plastic, and certain metals.
No Compromise on Performance – Formulations are crafted to uphold the durability, corrosion resistance, and visual appeal of the coating.

UV Cure Powder Coating for MDF and Wooden Cabinets

Powder Coating on MDF and Wooden Furnitures

Powder Coating on MDF and Wooden Cabinets

Downloads

Download all files associated with our low-bake powder coatings.

Download LB-Series Brochure

Document file size 5.73 MB

Technical Properties

Below are some key technical properties of our low-bake thermoset powder coatings. For full specifications and performance details, please don’t hesitate to contact us to request the technical data sheet.

Pre-treatment

For steel and Aluminum–Phosphating or Zirconium, Media blast or other suitable surface treatment

Application Conditions

Electrostatic powder spray 40 to 100 KV

Film Thickness

For normal usage 2.5 to 5.0 mils (Color and finish type related)

Hardness

HB to 4H (Formulation related)

Special Gravity

1.2 to 1.75 (Color related)

Coverage

160 to 110 ft²/lbs. /mil at 100% efficiency (Color related)

Baking Schedule

Super low-temperature cure: 10-30 minutes at 280 ºF (138 ºC); Epoxy can cure at 250 ºF. Low-temperature cure: 8-20 minutes at 320 ºF (160 ºC). Fast cure: 2-5 minutes at 400 ºF (205 ºC).

Applications

This solution is perfect for specialty applications that involve temperature-sensitive substrates, including engineered temperature-resistant plastics, composites, and MDF wood, which may warp under elevated temperatures. Additionally, it works well with porous materials that tend to outgas, such as iron castings and galvanized steel.

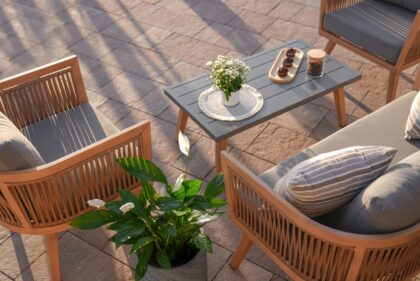

Furniture & Wood Products

MDF furniture, office furniture, architectural millwork

Electronics & Appliances

Computer housings, small appliances, lighting fixtures

Automotive & Transportation

Interior trims, aluminum wheels, lightweight components

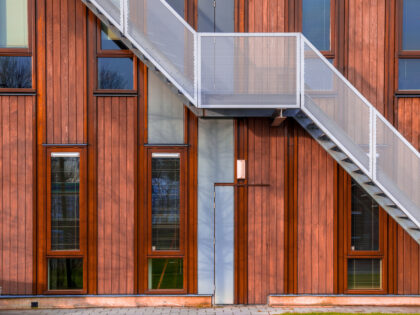

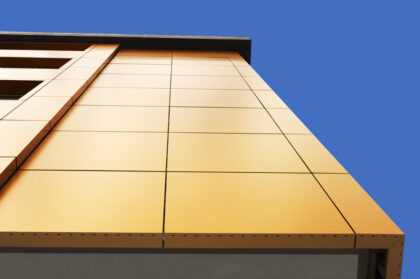

Building & Construction

Decorative panels, architectural elements, doors & windows

Industrial & General Goods

Fixtures & displays, metal furniture, garden equipment

Solutions

Our low-bake thermoset powder coatings deliver high performance while curing at lower temperatures, making them ideal for MDF, plastics, thin metals, and other temperature-sensitive substrates. From furniture and appliances to automotive, construction, and industrial goods, they provide durability, energy savings, and sustainability—all with the same finish quality expected from Protech coatings.
